Home > Products > Slewing bearings > Different diameter double-row ball four point contact slewing bearing > Different diameter double-row ball four point contact slewing bearing (internal gear type)

Different diameter double-row ball four point contact slewing bearing (internal gear type)

Request a Quote Consultation

Model

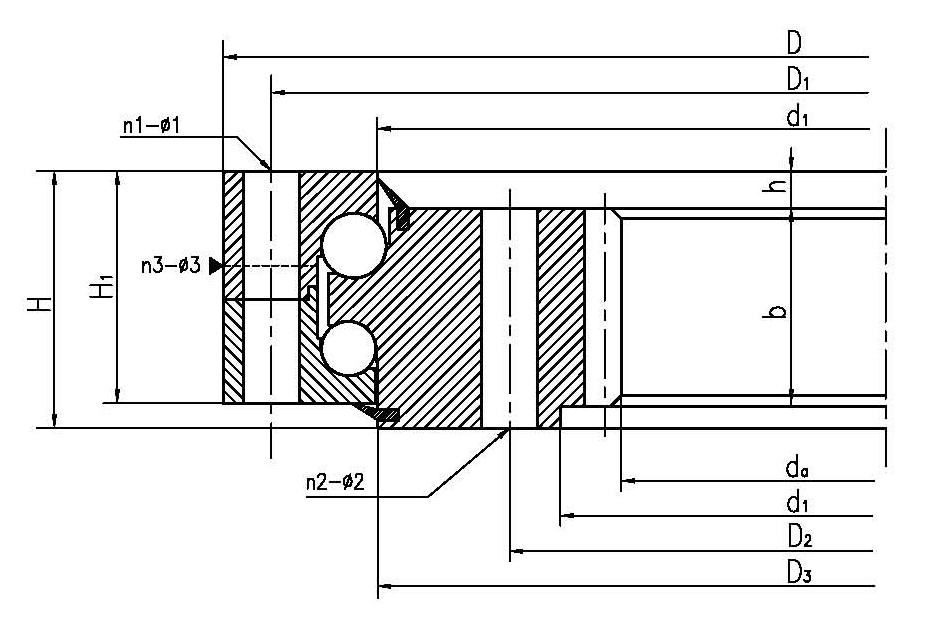

LYC Model	TG Model	Boundary dimensions (mm)				Bolt hole diameter (mm)						Structure dimensions (mm)								Gear Parameters (mm)				Basic load ratinge Coa (KN)	Weight (KG)
LYC Model	TG Model	Da	D	di	H	La	Li	n1	n2	φ1	φ2	D1	d	b	h	B	C	Di	da	m	z	do	x	Basic load ratinge Coa (KN)	Weight (KG)
024.25.500.**		348	616	384	106	580	420	20	20	18	18			60	10	80	96	477	483	6	59	354	+0.5	1210	100
023.25.500.**		355	616	384	106	580	420	20	20	18	18			60	10	80	96	517	523	5	72	360	+0.5	1210	100
024.25.560.**		408	676	444	106	640	480	20	21	18	18			60	10	80	96	537	543	6	69	414	+0.5	1340	115
023.25.560.**		415	676	444	106	640	480	20	20	18	18			60	10	80	96	577	583	5	84	420	+0.5	1340	115
024.25.630.**		472	746	514	106	710	550	24	24	18	18			60	10	80	96	607	613	8	60	480	+0.5	1530	130
023.25.630.**		480	746	514	106	710	550	24	24	18	18			60	10	80	96	647	653	6	81	486	+0.5	1530	130
024.25.710.**		552	826	594	106	790	630	24	24	18	18			60	10	80	96	687	693	8	70	560	+0.5	1730	140
023.25.710.**		558	826	594	106	790	630	24	24	18	18			60	10	80	96	727	733	6	94	564	+0.5	1730	140
024.30.800.**		610	942	658	124	898	702	30	30	22	22			80	10	95	114	771	778	10	62	620	+0.5	2300	200
023.30.800.**		616	942	658	124	898	702	30	30	22	22			80	10	95	114	822	828	8	78	624	+0.5	2300	200
		648	823	678	77	798	705	24	24	17.5	M16			45	3	54	74	710	734	6	110	660		1800	90
024.30.900.**		710	1042	758	124	998	802	30	30	22	22			80	10	95	114	871	878	10	72	720	+0.5	2580	250
023.30.900.**		712	1042	758	124	998	802	30	30	22	22			80	10	95	114	922	928	8	90	720	+0.5	2580	250
		784	971	820	82	944	850	30	30	17.5	M16			50	4	58	78	854	879	8	100	800		2300	118
024.30.1000.**		792	1142	858	124	1098	902	36	36	22	22			80	10	95	114	971	978	12	67	804	+0.5	2860	300
023.30.1000.**		810	1142	858	124	1098	902	36	36	22	22			80	10	95	114	1022	1028	10	82	820	+0.5	2860	300
024.30.1120.**		912	1262	978	124	1218	1022	36	36	22	22			80	10	95	114	1091	1098	12	77	924	+0.5	3210	340
023.30.1120.**		920	1262	978	124	1218	1022	36	36	22	22			80	10	95	114	1142	1148	10	93	930	+0.5	3210	340
		960	1161	1010	90	1131	1040	36	36	17.5	M16			55	12	66	78	1044	1069	10	98	980		2850	154
023.40.1250.**		1008	1426	1074	160	1374	1126	40	40	26	26			90	10	121	150	1282	1286	12	85	1020	+0.5	4820	580
024.40.1250.**		1008	1426	1074	160	1374	1126	40	40	26	26			90	10	121	150	1214	1218	14	73	1022	+0.5	4820	580
024.40.1400.**		1148	1576	1224	160	1524	1272	40	40	26	26			90	10	121	150	1364	1368	14	83	1162	+0.5	5430	650
023.40.1400.**		1152	1576	1224	160	1524	1272	40	40	26	26			90	10	121	150	1432	1436	12	97	1164	+0.5	5430	650
		1164	1500		120	1455	1275	36	36	26	26			91	6	91	114	1352	1358	12	98	1176	-0.5	5000	474
		1180	1460		102	1425	1270	36	36	22	22			76	6	76	96	1337	1342	10	119	1190	-0.5	4200	336
		1210	1440		82	1410	1300	54	54	17.5	M16			58	4	58	78	1319	1342	10	122	1220	-0.5	3700	213
023.40.1600.**		1344	1776	1424	160	1724	1476	45	45	26	26			90	10	121	150	1632	1636	14	97	1358	+0.5	6200	750
024.40.1600.**		1344	1776	1424	160	1724	1476	45	45	26	26			90	10	121	150	1564	1568	16	85	1360	+0.5	6200	750
		1404	1700		102	1665	1510	42	42	22	22			76	6	76	96	1577	1582	12	118	1416	-0.5	5000	405
		1416	1750		120	1705	1525	40	40	26	26			91	6	91	114	1602	1610	12	119	1428	-0.5	6000	558
